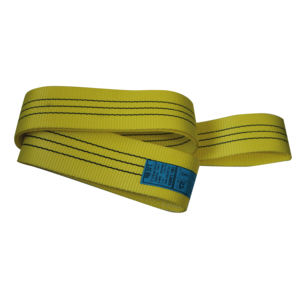

Disponibles en un amplio rango de cargas máximas de utilización y longitudes
Disponibles en un amplio rango de cargas máximas de utilización y longitudes
| WLL (ton) | |||||||||||
| WLL del componente cinta cosida |
Ancho cinta | Color del componente cinta cosida | Elevación vertical | Elevación estrangulada | Cesta estrangulada | Eslinga de 2 ramales | Eslinga de 3 y 4 ramales | ||||
 |
 |
 |
 |
 |
 |
||||||
 |
 |
 |
 |
 |
 |
||||||
| Paralelo | β = 0 to 45º | β = 45 to 60º | β = 0 to 45º | β = 45 to 60º | β = 0 to 45º | β = 45 to 60º | |||||
| t | mm | M = 1 | M = 0,8 | M = 2 | M = 1,4 | M = 1 | M = 1,4 | M = 1 | M = 2,1 | M = 1,5 | |
| 1 | 25/40 | Violeta | 1 | 0,8 | 2 | 1,4 | 1 | 1,4 | 1 | 2,1 | 1,5 |
| 1.5* | 50 | Rosa | 1,5 | 1,2 | 3 | 2,1 | 1,5 | 2,1 | 1,5 | 3,15 | 2,25 |
| 2 | 60 | Verde | 2 | 1,6 | 4 | 2,8 | 2 | 2,8 | 2 | 4,2 | 3 |
| 2,5* | 75 | Verde oscuro | 2,5 | 2 | 5 | 3,5 | 2,5 | 3,5 | 2,5 | 5,25 | 3,75 |
| 3 | 90 | Amarillo | 3 | 2,4 | 6 | 4,2 | 3 | 4,2 | 3 | 6,3 | 4,5 |
| 4 | 120 | Gris | 4 | 3,2 | 8 | 5,6 | 4 | 5,6 | 4 | 8,4 | 6 |
| 5 | 140/150 | Rojo | 5 | 4 | 10 | 7 | 5 | 7 | 5 | 10,5 | 7,5 |
| 6 | 150/180 | Marrón | 6 | 4,8 | 12 | 8,4 | 6 | 8,4 | 6 | 12,6 | 9 |
| 8 | 240 | Azul | 8 | 6,4 | 16 | 11,2 | 8 | 11,2 | 8 | 16,8 | 12 |
| 10 | 250/300 | Anaranjado | 10 | 8 | 20 | 14 | 10 | 14 | 10 | 21 | 9 |
| > 10 | Anaranjado | ||||||||||
| M = Factor de forma para carga simétrica. Tolerancia de manipulación para eslingas o partes de eslingas indicadas como verticales = 6º. *Valores no normalizados. |

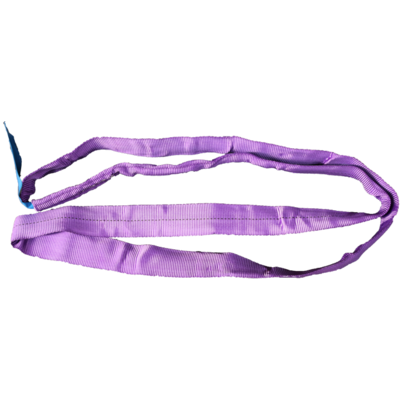

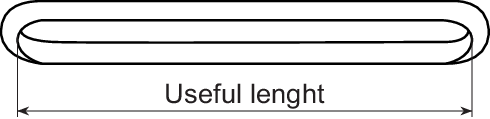

EN 1492-2
|
Safety Factor 7:1 |
Straight pull | Basket hitch | Choke hitch | Basket hitch | ||
|---|---|---|---|---|---|---|
 |
 |
 |
 |
|||
| 0°−45° | 45°−60° | |||||
| Color | Working load limit (WLL) in tons | |||||
| Purple | 1,0 | 2,0 | 0,8 | 1,4 | 1,0 | |
| Green | 2,0 | 4,0 | 1,6 | 2,8 | 2,0 | |
| Yellow | 3,0 | 6,0 | 2,4 | 4,2 | 3,0 | |
| Grey | 4,0 | 8,0 | 3,2 | 5,6 | 4,0 | |
| Red | 5,0 | 10,0 | 4,0 | 7,0 | 5,0 | |
| Brown | 6,0 | 12,0 | 4,8 | 8,4 | 6,0 | |
| Blue | 8,0 | 16,0 | 6,4 | 11,2 | 8,0 | |
| Orange | 10,0 | 20,0 | 8,0 | 14,0 | 10,0 | |
| Orange | 12,0 | 24,0 | 9,6 | 16,8 | 12,00 | |
| Orange | 15,0 | 30,0 | 12,0 | 21,0 | 15,0 | |
| Orange | 20,0 | 40,0 | 16,0 | 28,0 | 20,0 | |
| Orange | 25,0 | 50,0 | 20,0 | 35,0 | 25,0 | |
| Orange | 30,0 | 60,0 | 24,0 | 42,0 | 30,0 | |
| Orange | 35,0 | 70,0 | 28,0 | 49,0 | 35,0 | |
| Orange | 40,0 | 80,0 | 32,0 | 56,0 | 40,0 | |
| Orange | 50,0 | 100,0 | 40,0 | 70,0 | 50,0 | |
| Orange | 60,0 | 120,0 | 48,0 | 84,0 | 60,0 | |
| Orange | 70,0 | 140,0 | 56,0 | 98,0 | 70,0 | |
| Orange | 80,0 | 160,0 | 64,0 | 112,0 | 80,0 | |
| Orange | 85,0 | 170,0 | 68,0 | 119,0 | 85,0 | |
| Orange | 90,0 | 180,0 | 72,0 | 126,0 | 90,0 | |
| Orange | 100,0 | 200,0 | 80,0 | 140,0 | 100,0 | |
| Orange | 125,0 | 250,0 | 100,0 | 175,0 | 125,0 | |
| Orange | 150,0 | 300,0 | 120,0 | 210,0 | 150,0 | |
| Orange | 175,0 | 350,0 | 140,0 | 245,0 | 175,0 | |
| Orange | 180,0 | 360,0 | 144,0 | 252,0 | 180,0 | |
| Orange | 200,0 | 400,0 | 160,0 | 280,0 | 200,0 | |
| Factor (KL) | 1 | 2 | 0,8 | 1,4 | 1 | |
