- Eslingas de un solo uso, según normativa UNE 40901
- Factor de seguridad 7
- Generalmente, cinta de color blanco
- No reutilizables
Disponibles en un amplio rango de cargas máximas de utilización y longitudes.

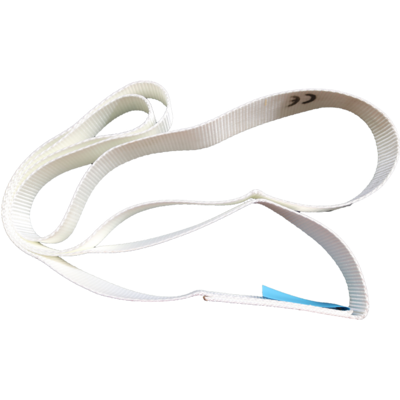

Webbing sling polyester
EN 1492-1
|
Safety Factor 7:1 |
Straight pull | Basket hitch | Choke hitch | Basket hitch | ||
|---|---|---|---|---|---|---|
 |
 |
 |
 |
|||
| 0°−45° | 45°−60° | |||||
| Width | Working load limit (WLL) in tons | |||||
| 50 mm | 1,0 | 2,0 | 0,8 | 1,4 | 1,0 | |
| 60 mm | 2,0 | 4,0 | 1,6 | 2,8 | 2,0 | |
| 90 mm | 3,0 | 6,0 | 2,4 | 4,2 | 3,0 | |
| 120 mm | 4,0 | 8,0 | 3,2 | 5,6 | 4,0 | |
| 150 mm | 5,0 | 10,0 | 4,0 | 7,0 | 5,0 | |
| 180 mm | 6,0 | 12,0 | 4,8 | 8,4 | 6,0 | |
| 240 mm | 8,0 | 16,0 | 6,4 | 11,2 | 8,0 | |
| 300 mm | 10,0 | 20,0 | 8,0 | 14,0 | 10,0 | |
| 300 mm | 12,0 | 24,0 | 9,6 | 16,8 | 12,0 | |
| 240 mm | 15,0 | 30,0 | 12,0 | 21,0 | 15,0 | |
| 300 mm | 20,0 | 40,0 | 16,0 | 28,0 | 20,0 | |
| Factor (KL) | 1 | 2 | 0,8 | 1,4 | 1 | |
